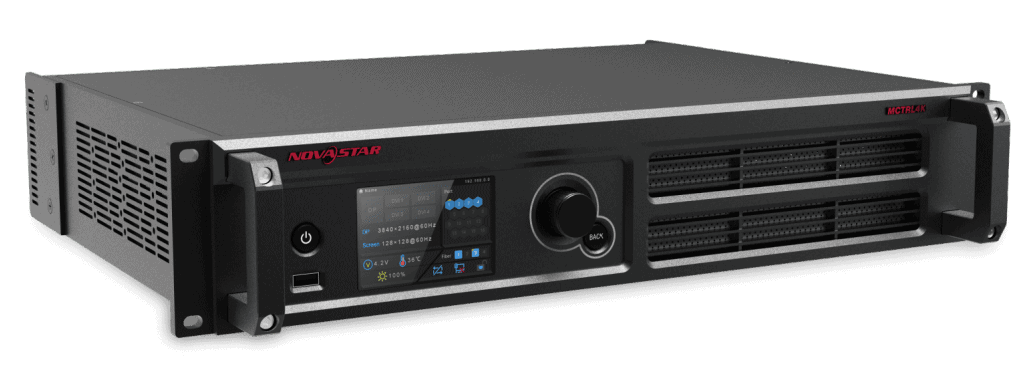

NovaStar MCTRL 4K is a professional-grade LED wall controller designed to deliver ultra-high-definition visuals with impeccable clarity and color precision. Supporting resolutions up to 4K×2K @ 60Hz and featuring HDR10 and HLG support, the MCTRL 4K ensures vibrant, true-to-life image reproduction across large-scale LED displays.
Equipped with advanced image processing technology, the MCTRL 4K offers seamless switching, low latency, and flexible input/output configurations to support the most demanding live events, broadcast productions, digital signage, and rental applications. Whether it's for concert stages, sports arenas, or corporate environments, this controller ensures pixel-perfect performance and uncompromised reliability.
| Feature | Description |
|---|---|
| Model | NovaStar MCTRL 4K |
| Maximum Resolution | 4096×2160 @ 60Hz |
| Video Inputs | 1× HDMI 2.0, 1× Dual-Link DVI, 1× 12G-SDI (or 4× 3G-SDI) |
| Output Ports | 16x Neutrik Gigabit Ethernet Ports, 4x 10G Optical Fiber Outputs |
| HDR Support | HDR10 and HLG |
| Latency | As low as 1 frame |
| Color Depth | 10-bit processing |
| Seamless Switching | Supported between input sources |
| Cascading | Supports multiple units for ultra-large display configurations |
| Control Methods | USB, Ethernet, NovaStar SmartLCT software |
| Redundancy | Supports input and output backup for fail-safe operation |
| Dimensions | 482.6 × 385.2 × 92.0 mm (W×D×H) |
| Weight | Approx. 7.5 kg |
| Certifications | CE, FCC, RoHS |
