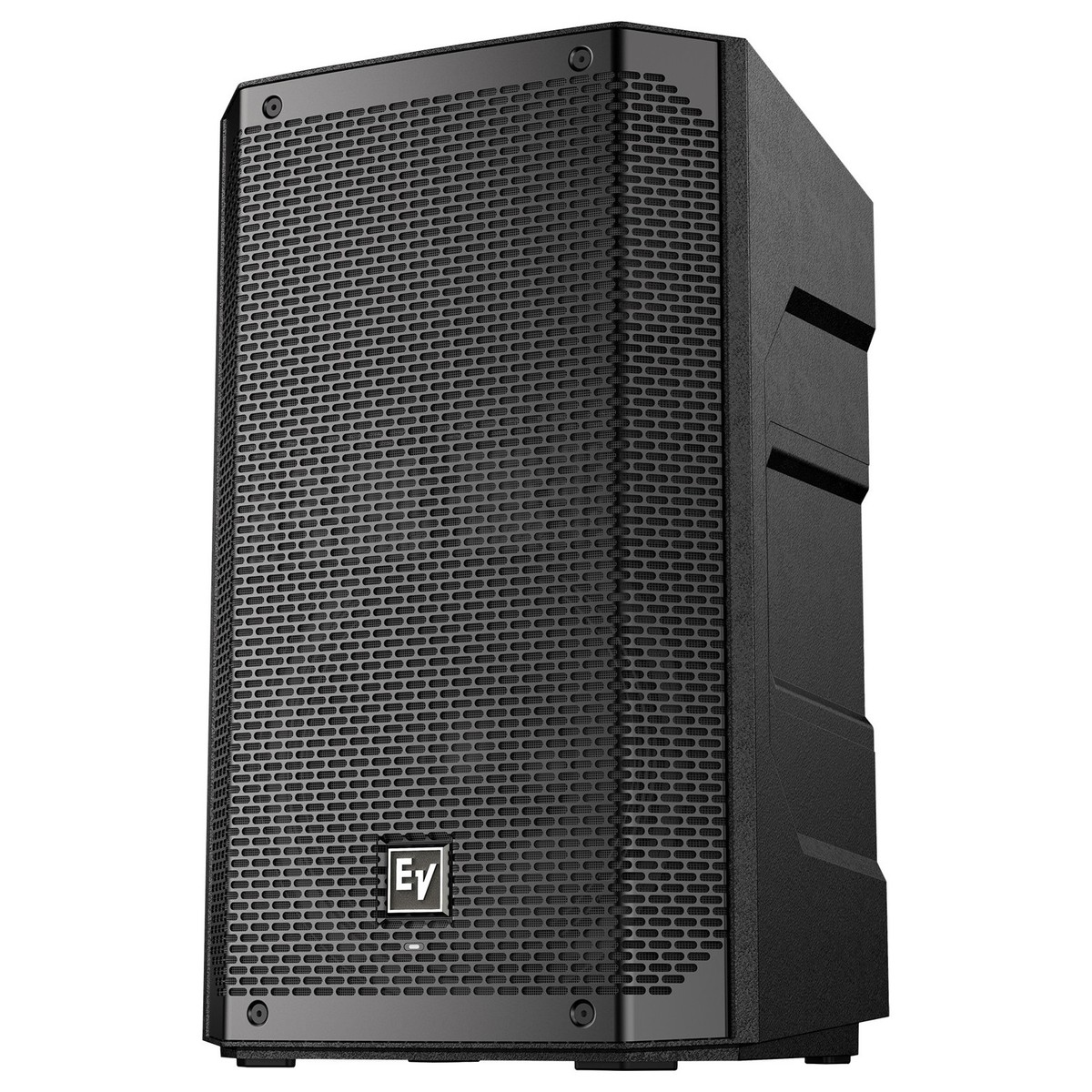

The Electro-Voice ELX200-10P is a compact, high-performance 10-inch powered speaker designed for portable sound and installed applications. Delivering 1200W of Class-D amplification, the ELX200-10P offers powerful, full-range audio with exceptional clarity and headroom—ideal for DJs, small to mid-sized live events, houses of worship, and corporate AV setups.
Equipped with a 10” EVS-10M woofer and a 1” titanium high-frequency driver, the ELX200-10P provides a frequency response of 59Hz – 18kHz and a max SPL of 130dB. The integrated QuickSmartDSP allows for intuitive control via a single knob interface or wirelessly through the QuickSmart Mobile app, giving users flexible EQ, presets, and system monitoring on the go.
Built into a lightweight polypropylene enclosure with ergonomic handles, pole mounts, and multiple rigging points, the ELX200-10P is engineered for durability and easy transport. Whether used as a main PA, monitor, or part of a larger system, it offers professional-grade performance in a streamlined package.
| Feature | Specification |
|---|---|
| Speaker Type | 2-way powered loudspeaker |
| Woofer | 10″ (EVS-10M) |
| Tweeter | 1″ titanium compression driver |
| Frequency Response (-3 dB) | 59 Hz – 18 kHz |
| Frequency Range (-10 dB) | 53 Hz – 20 kHz |
| Maximum SPL | 130 dB |
| Coverage Pattern | 90° x 60° (constant directivity) |
| Amplifier Type | Class-D |
| Amplifier Power Rating | 1200 W peak / 600 W RMS |
| Crossover Frequency | 1.7 kHz |
| Connectors | 2 x XLR/TRS combo jacks (mic/line), 1 x XLR output |
| Control Interface | QuickSmartDSP via LCD screen & single knob or mobile app (Bluetooth) |
| Enclosure Material | Polypropylene with integrated handle |
| Mounting Options | Pole-mountable, monitor angle, M10 suspension points |
| Grille | Steel with powder-coated finish |
| Dimensions (H x W x D) | 490 x 305 x 289 mm (19.3″ x 12″ x 11.4″) |
| Weight | 13.5 kg (29.8 lbs) |
