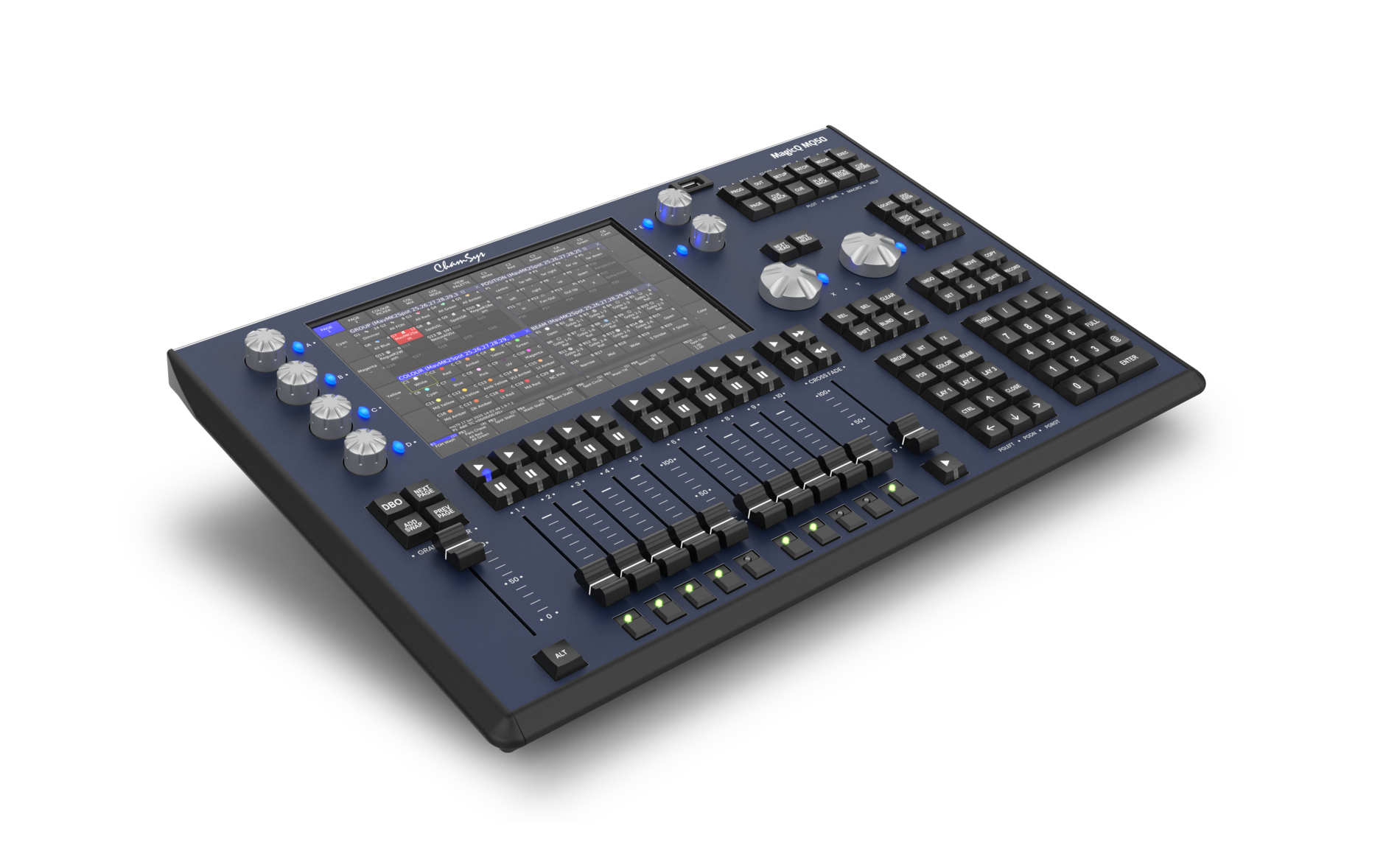

ChamSys MagicQ MQ50 Compact Lighting Console



Overview

The ChamSys MagicQ MQ50 Compact Lighting Console delivers professional-grade lighting control in a portable, space-saving format. Designed for small to medium-sized venues, theatres, schools, houses of worship, clubs and touring productions, the MQ50 combines the power of the MagicQ software platform with an intuitive hardware interface.

Featuring a bright 10.1-inch HD multi-touch display, 10 playback faders and 8 rotary encoders, the MQ50 provides fast, efficient programming and live operation. The console supports up to 8 DMX universes directly via Art-Net or sACN, with four assignable physical DMX outputs offering full RDM support for fixture management.

Built-in Wi-Fi allows seamless connection to the MagicQ Remote App without requiring external networking hardware, while HDMI output enables the addition of an external display for expanded programming. Fully compatible with all MagicQ consoles and software, the MQ50 allows show files to move effortlessly between systems, making it an excellent choice for rental companies, production professionals and permanent installations alike.

Product Specification

General

  • Professional compact lighting control console
  • Ideal for live events, theatres, schools, clubs and installations
  • Compatible with the full ChamSys MagicQ software ecosystem
  • Silent fanless operation

Control & Performance

  • Supports up to 8 DMX universes
  • 4,096 DMX channels
  • Controls up to 4,096 fixtures
  • Up to 5,000 cues
  • Up to 2,000 cue stacks
  • Up to 5,000 groups
  • Up to 4,096 palettes
  • Supports MagicVis visualisation
  • Supports MagicHD connectivity

Hardware

  • 10.1-inch HD multi-touch display
  • 10 playback faders
  • Grand Master fader
  • Crossfade Master fader
  • 8 attribute encoder wheels

Connectivity

  • 4 x 5-pin DMX outputs with RDM
  • 1 x Gigabit Ethernet port
  • Art-Net and sACN output
  • Built-in Wi-Fi
  • HDMI output for external monitor (up to 1920 × 1200)
  • 5 x USB ports
  • Audio input
  • Audio output
  • MIDI In/Out (Note support)

Power

  • Neutrik powerCON TRUE1 input
  • 110–240V AC
  • Maximum power consumption: 35W

Physical Specifications

  • Dimensions (W × D × H): 525 × 350 × 60 mm
  • Weight: 7 kg
