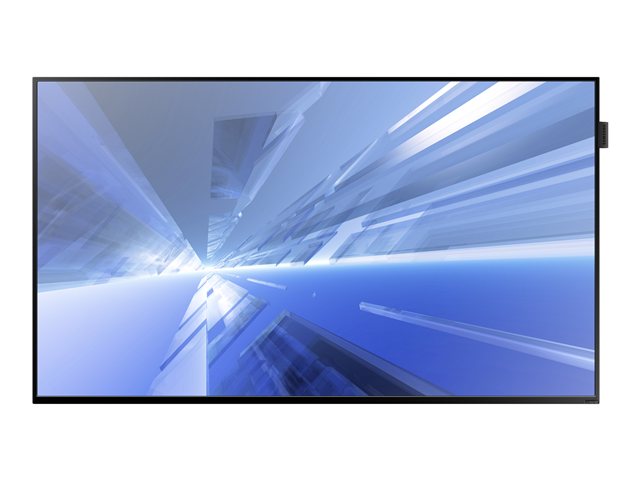

Samsung DB48D LED Screens

Overview

Captivate your audience and leave a lasting impression by hiring one of our Samsung LED display screens.

Samsung’s SMART Signage Platform (SSP) and full range of connectivity options allow the user to create a stunning, seamless video wall in full HD resolution.

The DB48D boasts sleek design, powerful technology and energy saving properties.

The display screen has a number of useful applications: use it for digital signage, as an interactive whiteboard or for a collaborative presentation.

• Enhanced SSP with quad core processor
• Sleek industrial design with slim-direct LED backlight technology
• Elegant 2” chassis depth
• Up to 50% energy savings over CCFL
• PC-Less Touch Support
• Full Connectivity (D-sub, component, composite, DVI, HDMI, USB, SD and more)
• Wi-Fi ready
• Clean UI design for an intuitive user experience

Product Specification

Series name

• DB-D Series

Display

• SCREEN SIZE: 48″
• PANEL TECHNOLOGY: Slim Direct-LED Backlight
• RESOLUTION: 1920 x 1080
• ASPECT RATIO 16:9
• BRIGHTNESS: 350 nits
• CONTRAST RATIO (TYPICAL): 5000:1
• RESPONSE TIME: 8ms

Connectivity

• INPUT: Video: VGA (D-Sub 15 Pin), DVI-D, Component/Composite, HDMI, Audio: Stereo Mini Jack
• OUTPUT: Audio: Stereo Mini Jack
• EXTERNAL CONTROL: RS232C (In/Out) thru Stereo Jack, RJ45
• SENSOR: IR, Ambient Light

Power

• POWER SUPPLY: AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
• POWER CONSUMPTION (TYPICAL/MAX): 65W / 132W
• POWER CONSUMPTION (STANDBY): < 0.5W

Environmental Conditions

• OPERATING TEMPERATURE: 0°C – 40°C
• OPERATING HUMIDITY: 10%~80%

Features

• SPECIAL: Hardware: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker, SD Card Slot Software: Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, Smart F/W update, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch
• SMART SIGNAGE PLATFORM: Yes
• BUILT-IN TUNER: Yes
• MEDIA PLAYER TYPE: Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS
• VESA STANDARD WALL-MOUNT INTERFACE: 400 x 400mm
• WI-FI: Yes
• BUILT-IN SPEAKERS: Yes

Dimensions

• WITHOUT STAND (W X H X D): 3″ X 24.4″ X 2.0″
• PACKAGING (W X H X D): 7″ X 28.1″ X 5.8″
• BEZEL WIDTH: 5mm (Top/Side), 15.0mm (Bottom)

Weight

• PRODUCT WEIGHT: 0 lb.
• PACKAGE WEIGHT: 0 lb.

Green Management

• ENERGY STAR® CERTIFIED: Yes
• ROHS COMPLIANT: Yes
• EMISSION STANDARD: EMC
