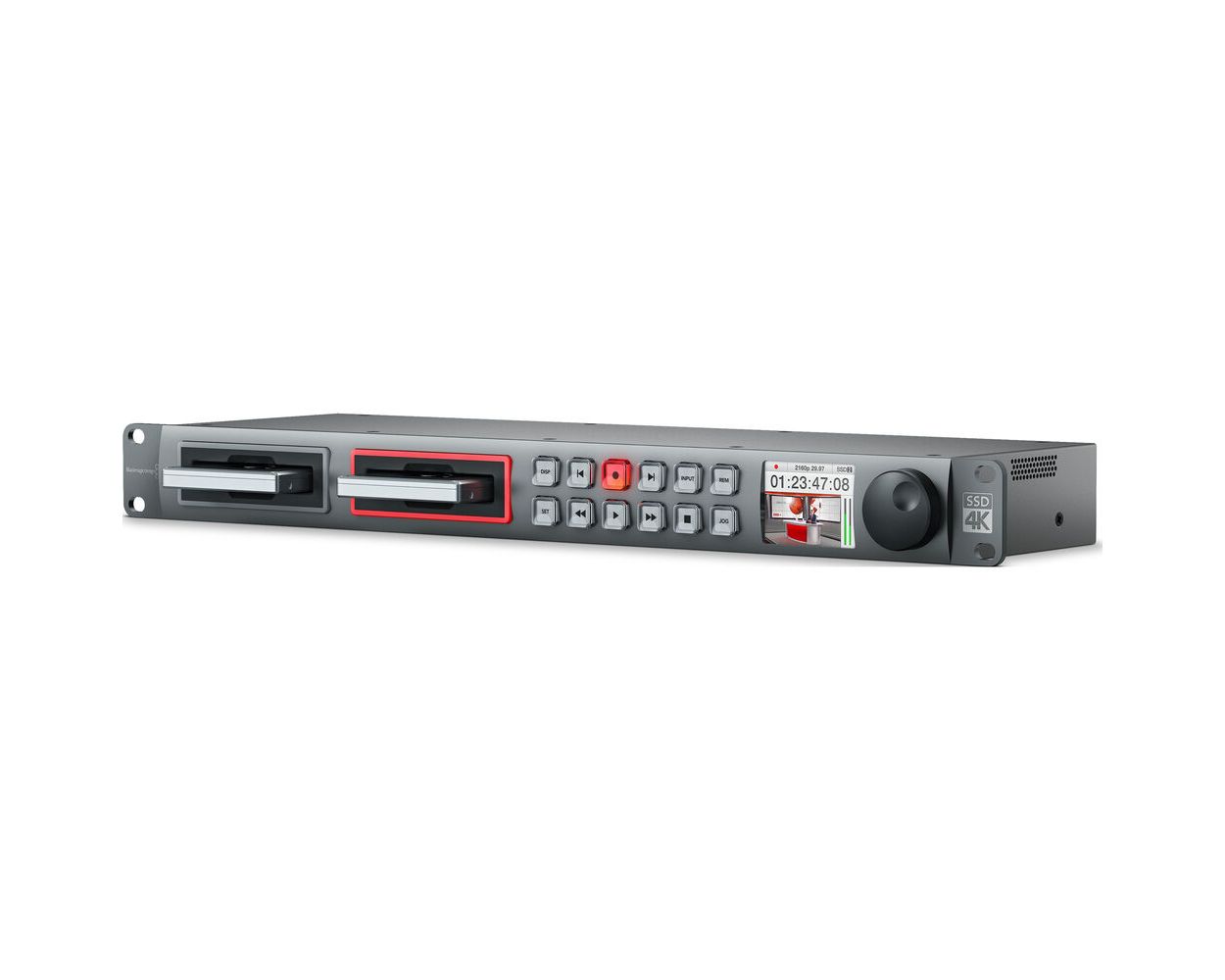

Blackmagic Design HyperDeck Studio Pro 2



Overview

The HyperDeck Studio Pro 2 is a fast, reliable and user-friendly disk recorder that offers broadcast quality. The file-based deck features the same functionality and control of professional tape decks.

It records high quality uncompressed or compressed ProRes and DNxHD video formats using 2.5” SSDs.

The manufacturer describes the Hyperdeck Studio Pro 2 as “the ultimate in compatibility and technology”.

The recorder includes a wide range of audio and video connections (analog and digital) so it is compatible with both old and new equipment.

This impressive piece of kit boasts SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck. It also includes 6G-SDI and Quad SDI, HDMI 4K, analog component, composite, balanced analog audio and AES/EBU audio compatibility. We stock the Pro 2 model, which includes Thunderbolt for computer capture and UltraScope software for live scopes.

Product Specification

Connections

  • SDI Video Input: 3 x 10-bit SD/HD/3G switchable. 1 x 6G-SDI switchable.
  • SDI Video Output: 4 x 10-bit SD/HD/3G/6G-SDI switchable. 1 x 10-bit SD/HD/3G-SDI switchable Monitor Output.
  • Analog Video Input: 1 x Component YUV on 3 BNCs, supports HD and SD.
  • Analog Video Output: 1 x Component YUV on 3 BNCs, supports HD and SD.
  • HDMI Videos Input: 1 x HDMI type A connector including Ultra HD 4K support.
  • HDMI Video Output: 1 x HDMI type A connector including Ultra HD 4K support.
  • Analog Audio Input: 2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.
  • Analog Audio Output: 2 x XLR connectors for professional balanced analog audio.
  • SDI Audio Input: 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • SDI Audio Output: 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • HDMI Audio Input: 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • HDMI Audio Output: 2 channels.
  • Timecode Input: 1 x XLR connector for timecode input.
  • Timecode Output: 1 x XLR connector for timecode output.
  • SSD Interface: 2 x 2.5″ SATA 3 Gb/s.
  • Sync Input: Black burst or Tri-Sync.
  • Device Control: Sony™ compatible RS422 deck control port.
  • Recorder Control: 12 buttons and jog wheel for local control of HyperDeck Studio Pro or use either RJ45 Ethernet or USB 2.0 high speed interface.
  • Recorder Configuration: Front panel configurable or USB 2.0 high speed interface.
  • Computer Interface: 1 x Thunderbolt™ port for capture of video and audio. 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.

Standards

  • SD Format Support
  • 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only.
  • HD Format Support
  • 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 4K Format Support
  • 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30
  • SDI Compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
  • SDI Metadata Support
  • Time Code: HD RP188. Closed Captioning: CEA-708.
  • Audio Sampling
  • Television standard sample rate of 48 kHz and 24-bit
  • Video Sampling
  • 4:2:2
  • Color Precision
  • 10-bit
  • Color Space
  • REC 601, REC 709
  • Multiple Rate Support
  • SDI and HDMI switchable between SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI and 6G-SDI. Analog SD/HD.
  • Copy Protection
  • HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Codecs

  • Uncompressed QuickTime, Apple ProRes 422 (HQ) QuickTime, ProRes 422 QuickTime, ProRes 422 (LT) QuickTime, ProRes 422 (Proxy) QuickTime, Avid DNxHD.QuickTime, Avid DNxHD MXF

Software

  • Software Included
  • Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
  • Internal Software Upgrade
  • Firmware built into software driver. Loaded at system start, or via updater software.

Operating Systems

  • Mac OS X 10.9 Mavericks,
  • Mac OS X 10.10 Yosemite or later.
  • Windows 7 or Windows 8.

Displays

  • Built-in LCD for video, audio and timecode monitoring and menu settings.

Physical Installation

  • 1 rack unit size. Less than 7 inches deep.

Power Requirements

  • Power Supply
  • 1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz.

Features

  • 20 different connections, including SDI video input/output, HDMI video input/output and Thunderbolt.
  • Two SSD bays
  • VTR style controls
  • Build in LCD monitor
